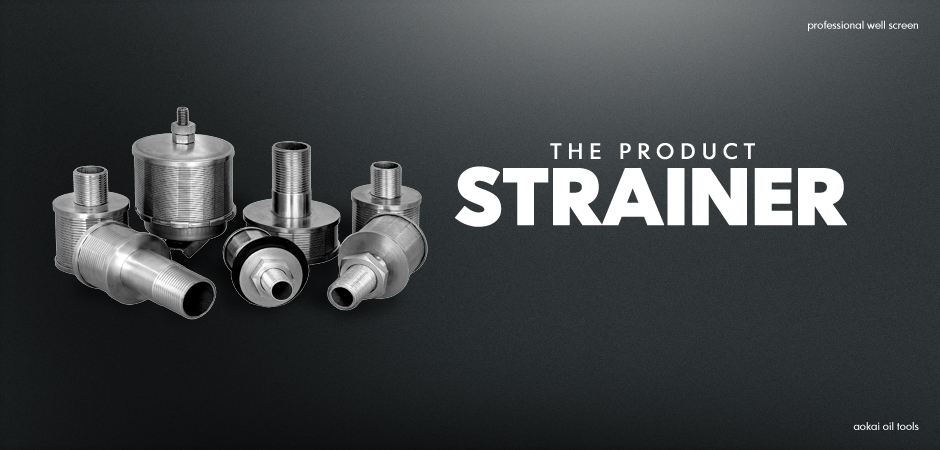

Products name：Water strainer & nozzle
Water strainers(nozzles) are manufactured in accordance to customer flow requirements in almost any alloy. They can be designed for filtration or treatment systems to permit more effective use of the treatment media. Because of their non-clogging design strainer are effective in a wide range of water treatment and other industrial applications. Common applications include under drain media retention elements or flow distributors in demineralizers and water softeners in pressure and gravity sand filters. Strainers can also be used as collectors at the bottom of the vessels by installing a number of strainers uniformly across a tray plate. The combination of high open area and a non-plugging slot design makes this nozzle/collector application popular.
Our nozzles are most commonly made with 304 or 316L stainless steel.
|
Type |
Diameter（D） |
L |
L1 |
Slot |
Thread |
Open area |
|
AKN1 |
45 |
98 |
34 |
0.2-0.25 |
M20 |
380-493 |
|
AKN2 |
45 |
100 |
44 |
0.2-0.25 |
M24 |
551-690 |
|
AKN3 |
53 |
100 |
34 |
0.2-0.25 |
M24 |
453-597 |
|
AKN4 |
53 |
100 |
50 |
0.2-0.25 |
M27 |
680-710 |
|
AKN5 |
53 |
105 |
34 |
0.2-0.25 |
M32 |
800-920 |
|
AKN6 |
57 |
115 |
35 |
0.2-0.25 |
M30 |
560-670 |
|
AKN7 |
57 |
120 |
55 |
0.2-0.25 |
M32 |
780-905 |
|
AKN8 |
60 |
120 |
55 |
0.2-0.25 |
G1" |
905-1100 |
|
AKN9 |
82 |
130 |
50 |
0.2-0.25 |
M33 |
1170-1280 |
|
AKN10 |
108 |
200 |
100 |
0.2-0.25 |
G2" |
3050-4600 |
Note：
1.You can choose a rubber gasket, lockable nut on the nozzle
2.Fitting can be NPT Thread,m20 Thread or Ring
